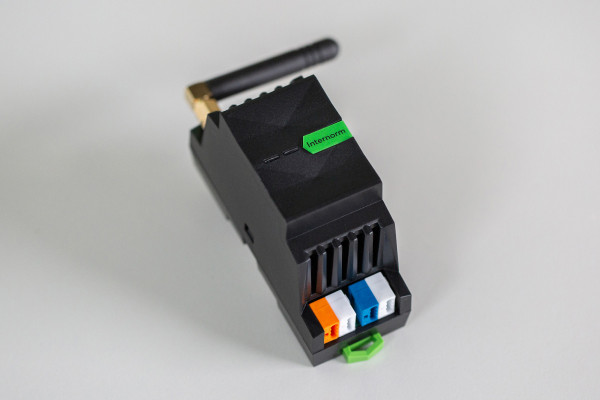

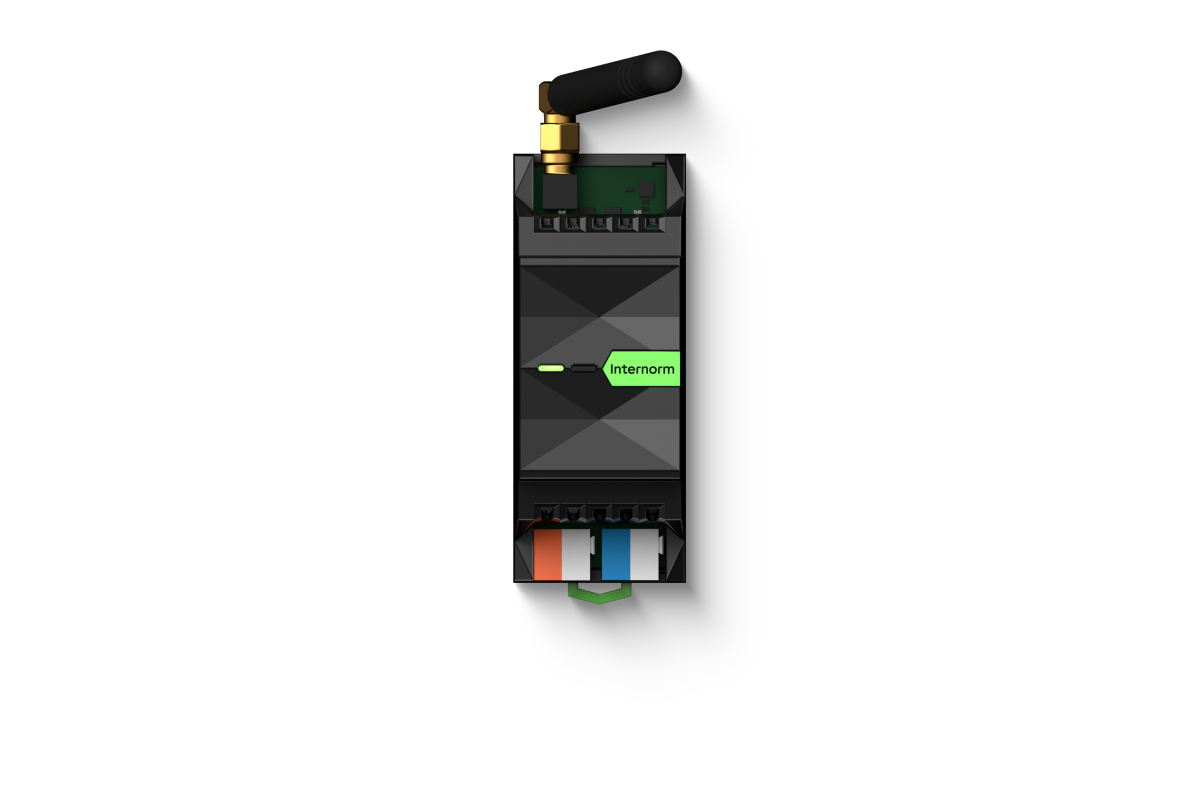

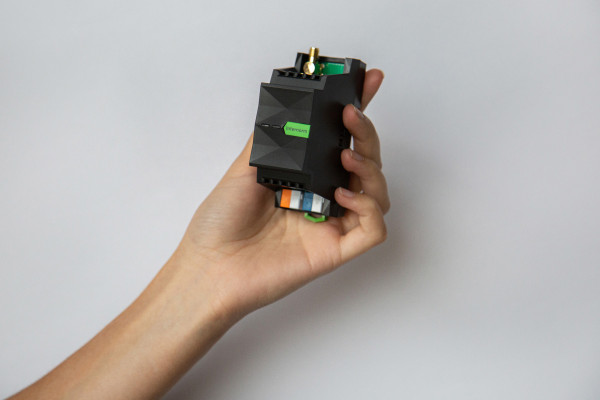

Loxone Internorm Extension
390,36 €
📞 +49 (0) 5031 705 999-0
Produktinformationen "Loxone Internorm Extension"
Die Loxone Internorm Extension ermoeglicht die Einbindung von I-tec Geraeten des Herstellers Internorm, die das I-tec 1.0 Funkprotokoll unterstuetzen. Damit lassen sich die Internorm I-tec Belueftung zur intelligenten Wohnraumlueftung und die I-tec Beschattung zur Automatikbeschattung vollstaendig integrieren. Es koennen bis zu 40 Internorm I-tec Komponenten verbunden werden.
- Vollstaendige Integration von Internorm I-tec Belueftung (intelligente Wohnraumlueftung)
- Vollstaendige Integration von I-tec Beschattung (Automatikbeschattung)
- Verbindung mit bis zu 40 Internorm I-tec Komponenten
- Unterstuetzt das I-tec 1.0 Funkprotokoll
Technische Daten
| Hersteller | Loxone |
| Artikelnummer | LOX-100232 |
| Gewicht | 0,07 kg |
| Abmessungen | 35×57×88 mm |
| Lieferzeit | 1-3 Werktage |
| Montageart | Hutschiene, Hutschienenmontage |
| Schutzart | IP20 |
Technische Daten im Detail
| Produkteigenschaften | |
| Mounting type | DIN rail according to EN 50022, 35 mm |
| Colours | Black: RAL 9005 |
| Finish | Matte |
| Elektrische Daten | |
| Supply voltage | 9 … 28 V DC |
| Power consumption | typ. 0.288 W, max. 0.312 W |
| Power loss at max. load | 0.312 W |
| Schnittstellen | |
| LOXONE Link | Connection with Miniserver |

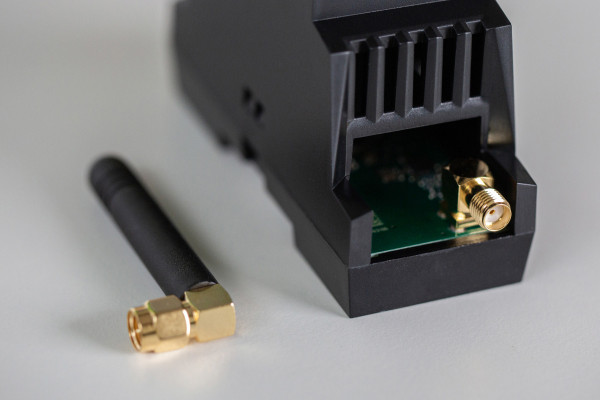

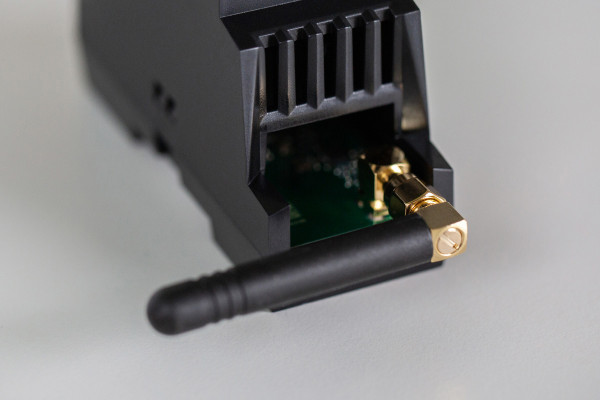

| Internorm | Protocol: I-tec 1.0 max. 40 devices 868 MHz (SRD Band Europa), EU Channel 0, max. 3.16 mW I-tec 2.0 protocol is currently not supported! |

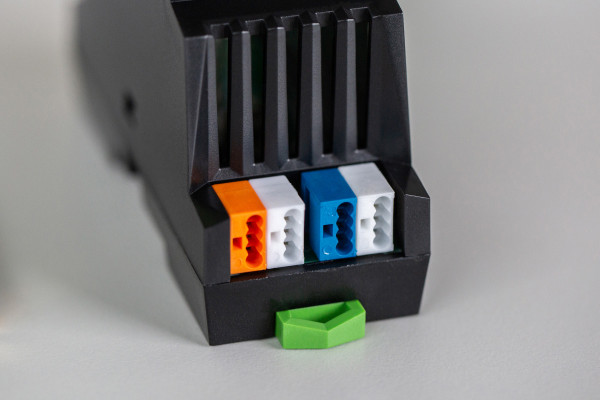

| Anschlussklemmen | |
| Wire cross-section | 0.25 … 0.8 mm² / AWG 23 … 18 |
| Temperature resistance | -40 … 105 °C / -40 … 221 °F |
| Stripping length | 5 mm / 0.2” |
| Umgebungsbedingungen | |
| Temperature | -40 … 70 °C / -40 … 158 °F |
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |
| Gewicht & Abmessungen | |
| Net weight | 65 g |
| Total weight | 85 g |
| Product dimensions | 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units |
| Pack size | 121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H) |
