Loxone Intercom Signalweiß
675,48 €
📞 +49 (0) 5031 705 999-0
Produktinformationen "Loxone Intercom Signalweiß"

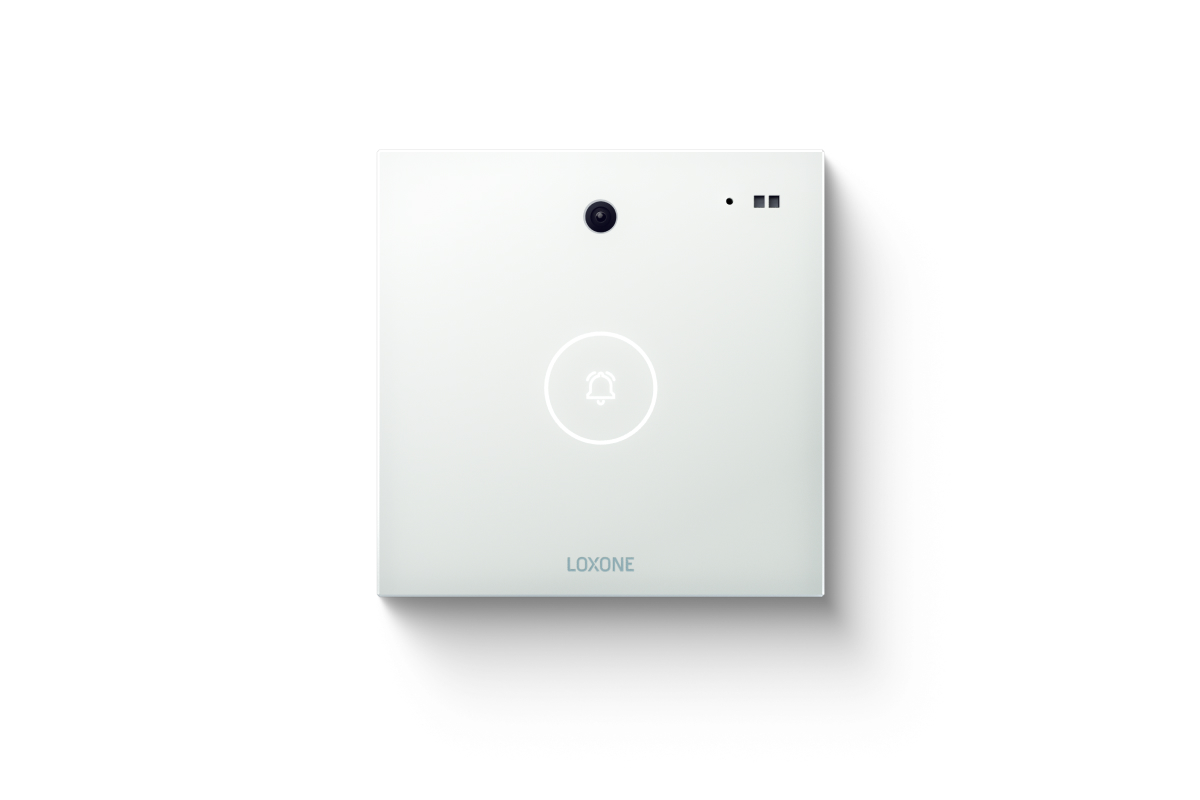

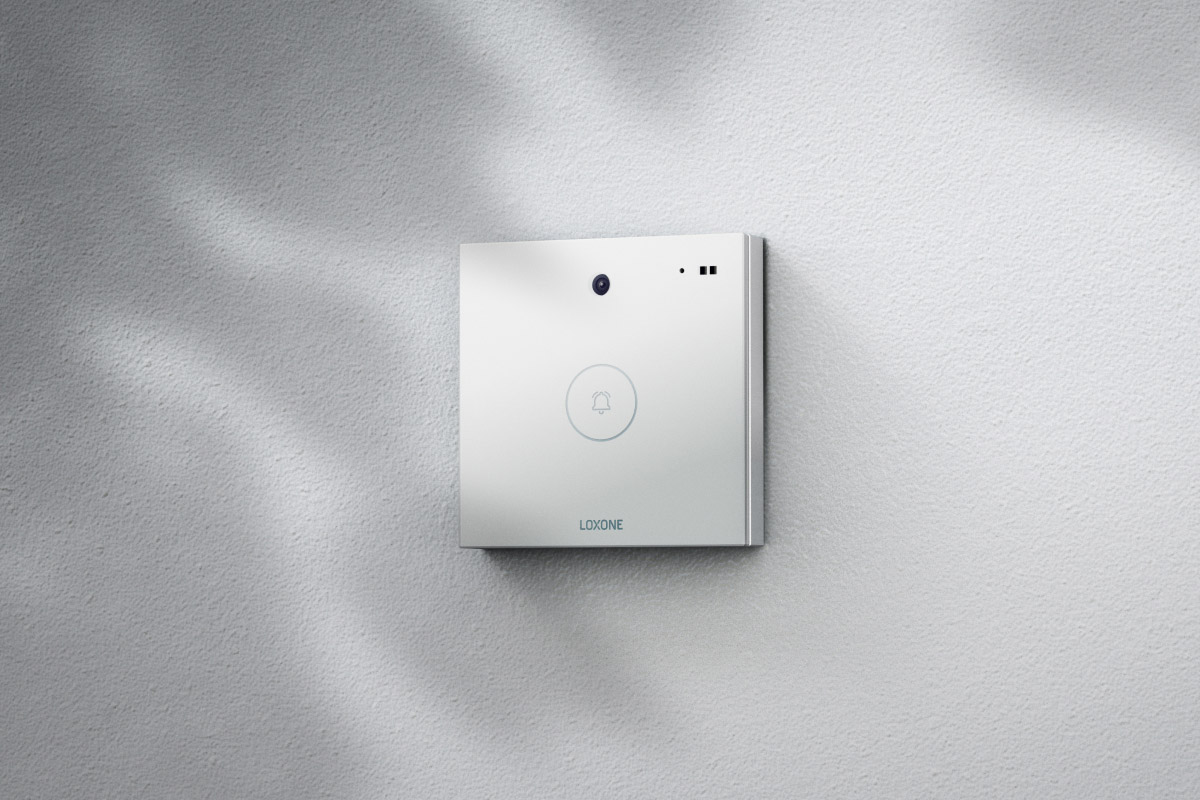

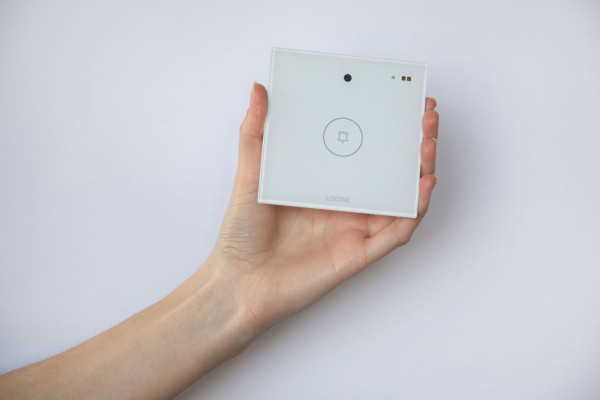

Die Loxone Intercom ist eine kompakte Video-Türsprechstelle mit Glasfront, beleuchteter Klingeltaste und Näherungssensor. Das Mikrofon ist in der Frontplatte, die Lautsprecher sind unsichtbar an der linken Gehäuseseite integriert. Versorgung und Kommunikation erfolgen über Power over Ethernet, zusätzlich ist eine Tree Schnittstelle integriert. In Kombination mit dem NFC Code Touch oder dem Touch Pure Flex entsteht eine komplette Zutrittslösung.
- Video-Türsprechstelle mit Glasfront
- Beleuchtete Klingeltaste und Näherungssensor
- Mikrofon in der Frontplatte, integrierte Lautsprecher
- Versorgung und Kommunikation über Power over Ethernet
- Integrierte Tree Schnittstelle

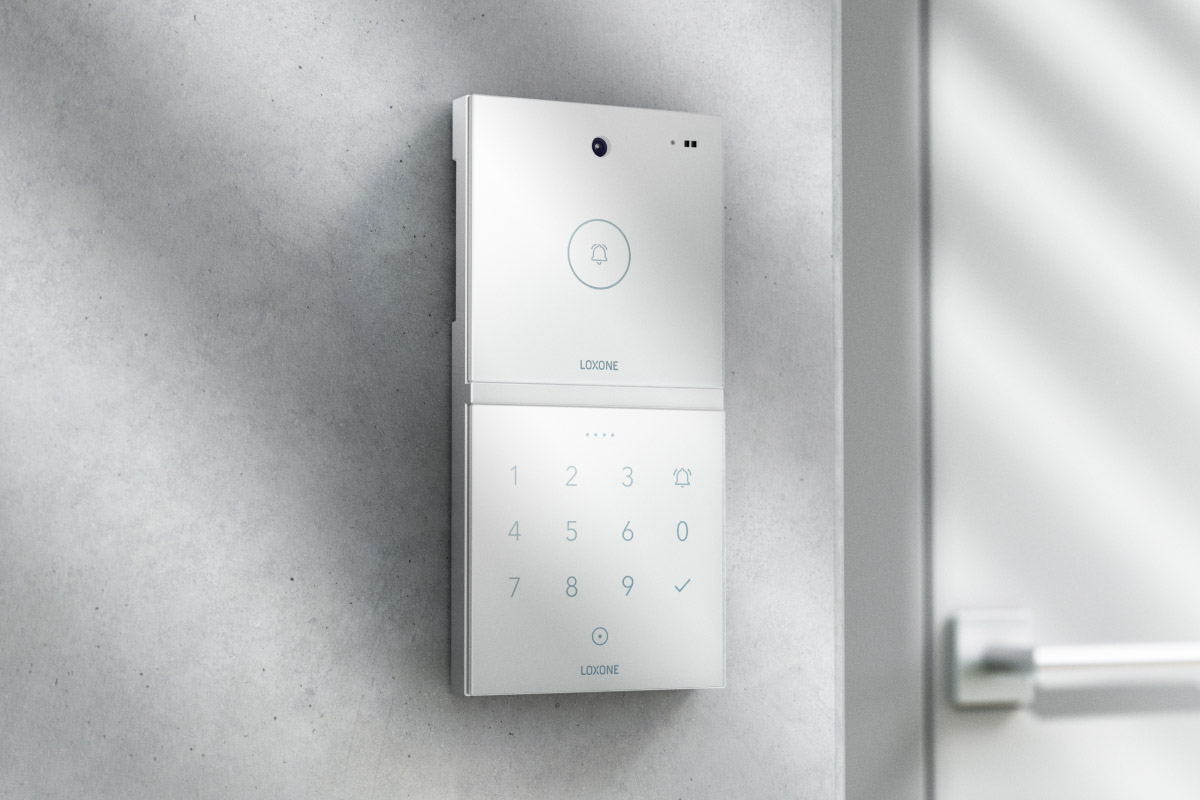

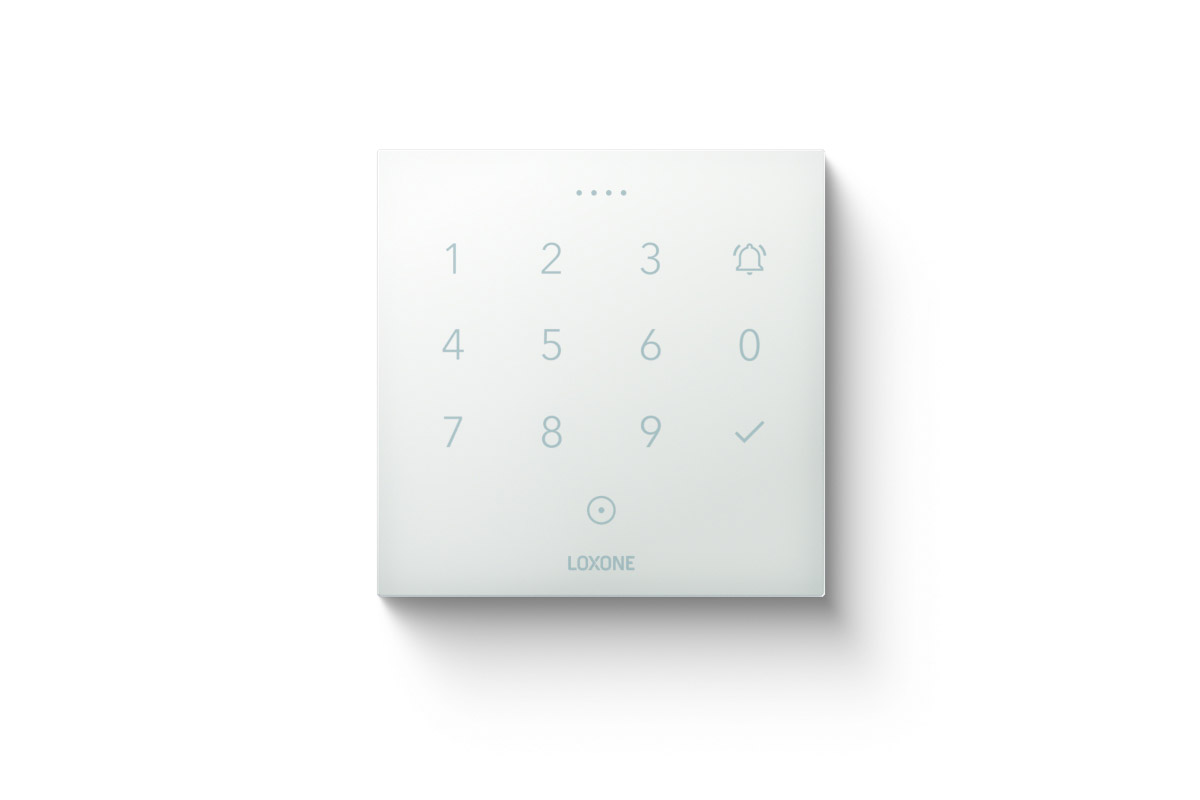

- Kombinierbar mit NFC Code Touch oder Touch Pure Flex
Technische Daten
| Hersteller | Loxone |
| Artikelnummer | LOX-100484 |
| Gewicht | 0,12 kg |
| Abmessungen | 90×16×90 mm |
| Lieferzeit | 1-3 Werktage |
| Farbe | Signalweiß |
Technische Daten im Detail
| Produkteigenschaften | |
| Colours | White: RAL 9003 |
| Finish | Matte |
| Elektrische Daten | |
| Power Supply | Power over Ethernet (PoE), typ. 48VDC IEEE 802.3af Mode A, power class 0 |
| Power consumption | typ. 1.7W, max. 5.8W (incl. 3W for external devices) |
| Ethernet interface | 100 MBit/s |
| Voltage output for supplying external devices (NFC Code Touch...) | 24VDC, max. 3W Wire length: max. 3m / 10ft |
| Interface | Connection of up to 50 Tree devices Wire length: max. 3m / 10ft |
| Bell button | 1 touch point, capacitive |
| Speaker | 2x 0.7W continuous / 2x 1W max. momentary |
| Microphone | Digital microphone, MEMS |
| Camera | Field of View: 120° diagonal, 97° horizontal, 50° vertical \\nResolution: 1280x720 pixel |
| Proximity Sensor | Detection Range: in direct light: 0.2m low ambient light: 2.0m detection angle 27° \\nTechnology: Infrared ToF Sensor |
| Mounting location with direct sunlight | allowed |
| Recommended mounting height | 1.6m / 63” top edge |
| Temperature | -20 … 40°C / -4 … 104°F |

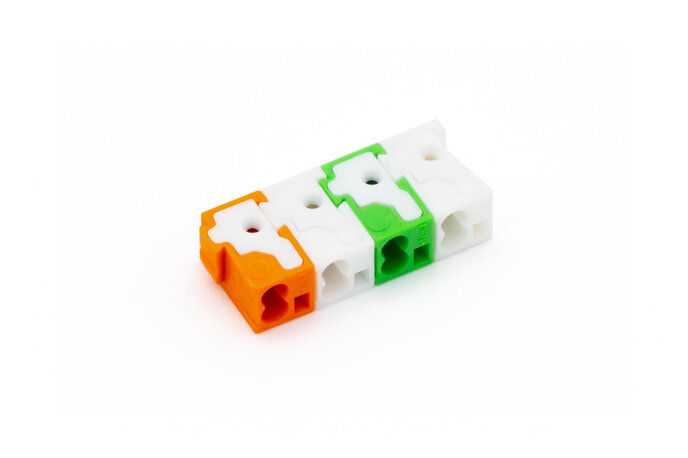

| Anschlussklemmen | |
| Wire cross-section | 0.25 … 0.8 mm² / AWG 23 … 18 |
| Stripping length | 5 mm / 0.2” |
| Temperature resistance | -40 … 105°C / -40 … 221°F |
| Umgebungsbedingungen | |
| Humidity | max. 95% r.H. (non condensing) |
| Gewicht & Abmessungen | |
| Net weight | 115 g |
| Total weight | 142 g |
| Product dimensions | 90 x 90 x 16 mm / 3.55 x 3.55 x 0.63” (L x W x H) |
| Pack size | 104 x 107 x 39 mm / 4.09 x 4.21 x 1.54” (L x W x H) |
| Zertifizierungen & Normen | |
| Protection class | IP34 |
| Operating Elements | |
| Click feedback | Yes |
