Loxone Intercom Anthrazit
675,48 €
📞 +49 (0) 5031 705 999-0
Produktinformationen "Loxone Intercom Anthrazit"

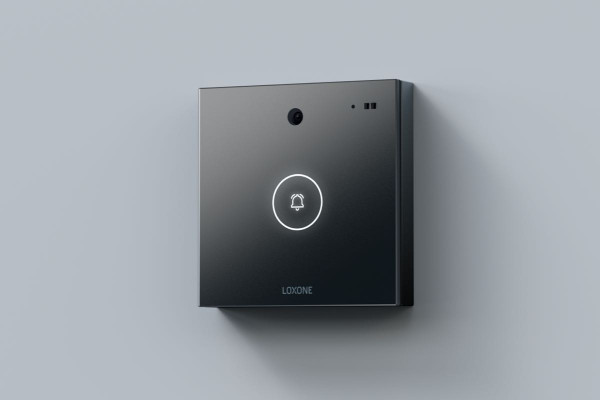

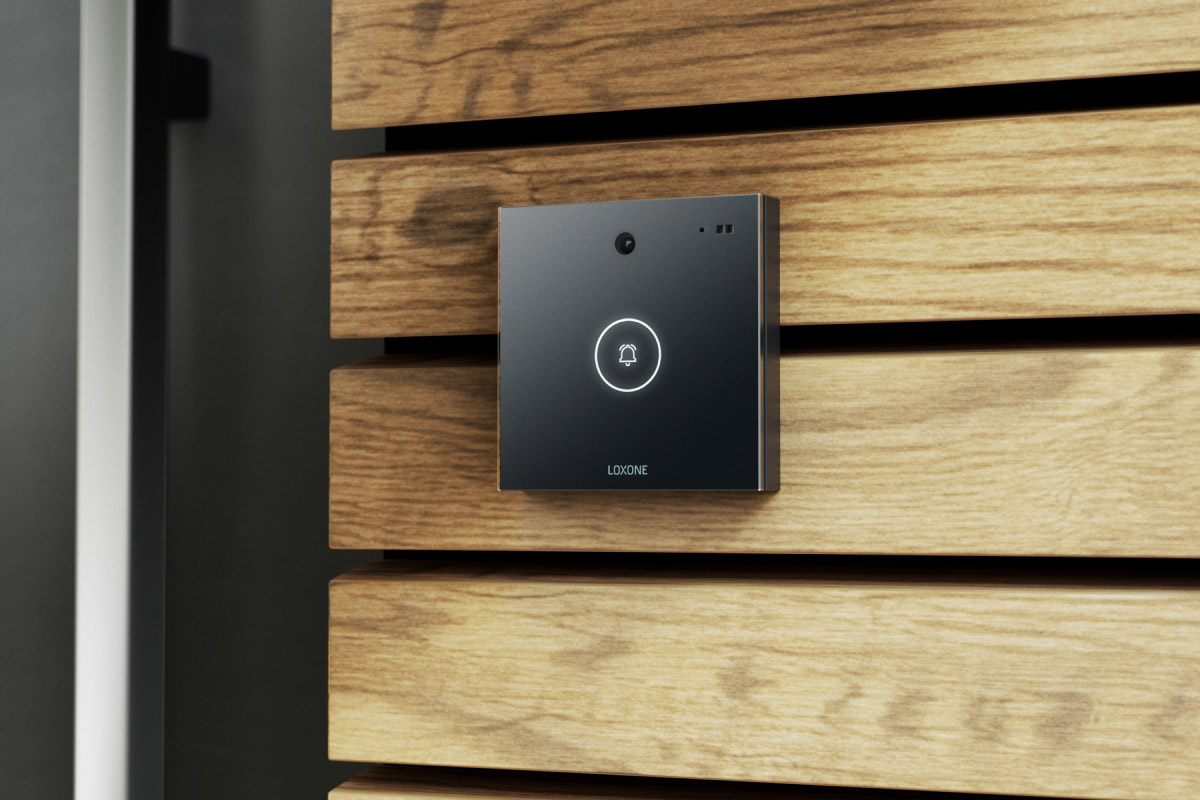

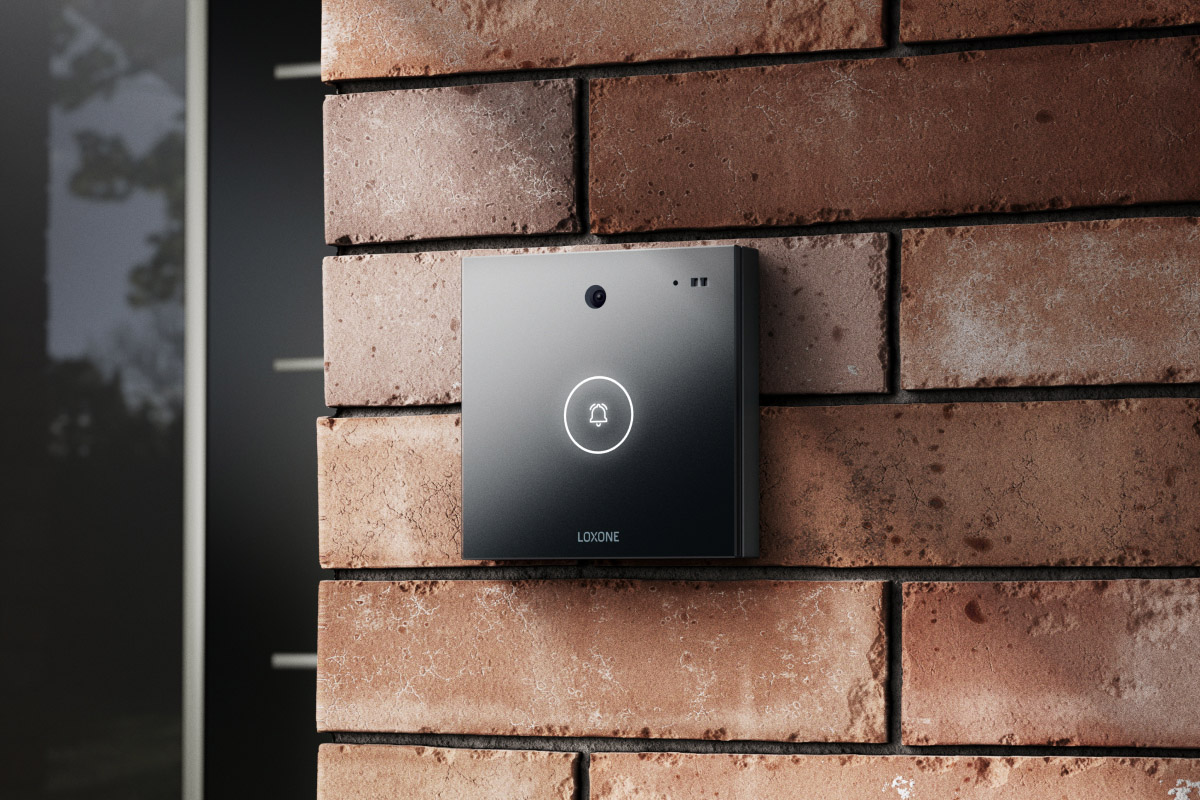

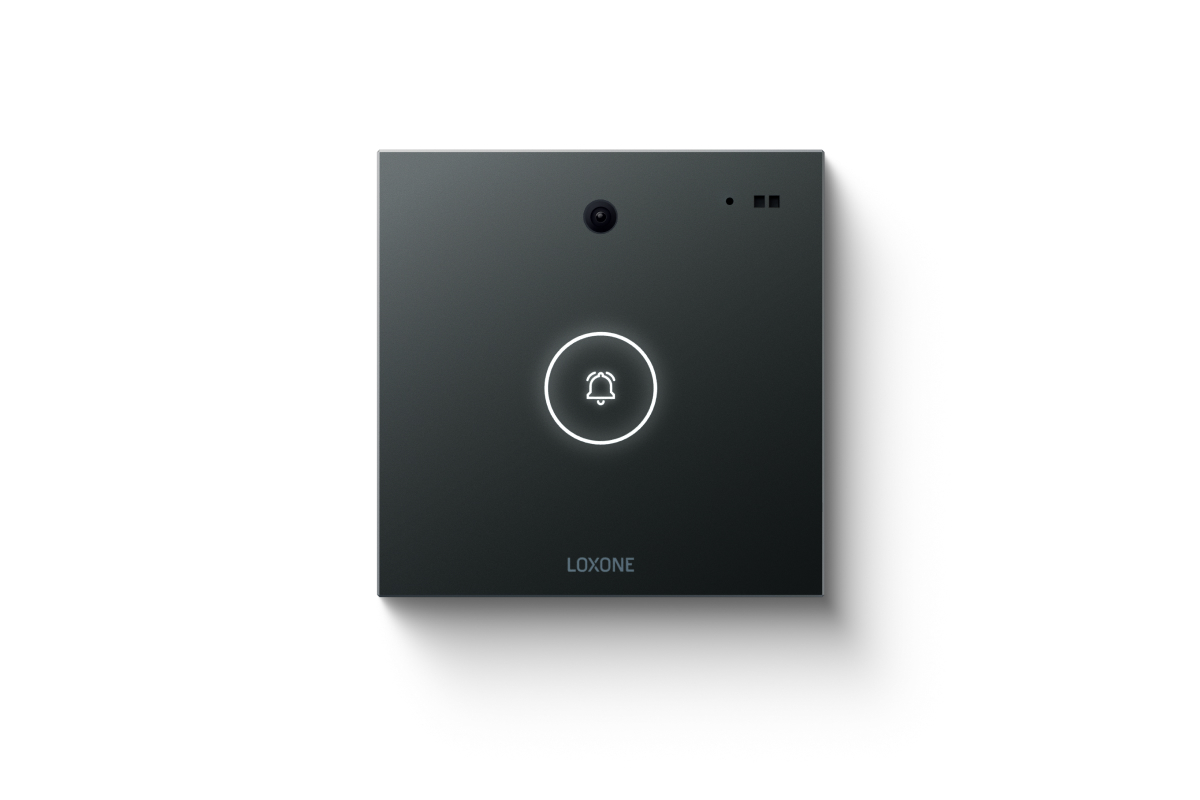

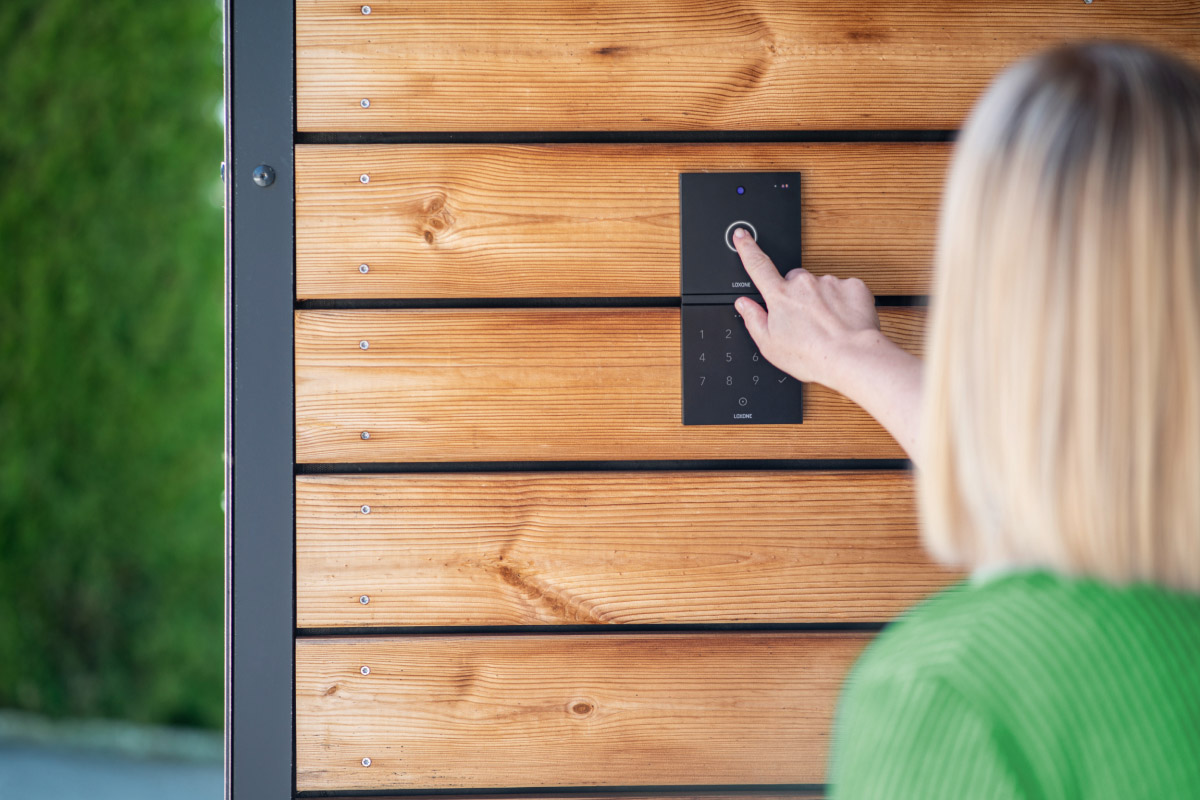

Die Loxone Intercom ist eine kompakte Video-Türsprechstelle mit Glasfront, beleuchteter Klingeltaste und Näherungssensor. Das Mikrofon ist in der Frontplatte, die Lautsprecher sind unsichtbar an der linken Gehäuseseite integriert. Versorgung und Kommunikation erfolgen über Power over Ethernet, zusätzlich ist eine Tree Schnittstelle integriert. In Kombination mit dem NFC Code Touch oder dem Touch Pure Flex entsteht eine komplette Zutrittslösung.
- Video-Türsprechstelle mit Glasfront
- Beleuchtete Klingeltaste und Näherungssensor
- Mikrofon in der Frontplatte, integrierte Lautsprecher
- Versorgung und Kommunikation über Power over Ethernet
- Integrierte Tree Schnittstelle
- Kombinierbar mit NFC Code Touch oder Touch Pure Flex
Technische Daten
| Hersteller | Loxone |
| Artikelnummer | LOX-100485 |
| Gewicht | 0,12 kg |
| Abmessungen | 90×16×90 mm |
| Lieferzeit | 1-3 Werktage |
| Farbe | anthrazit |
Technische Daten im Detail
| Produkteigenschaften | |
| Colours | White: RAL9003 - Part No. 100484 Anthracite: RAL9005 - Part No. 100485 |
| Finish | Matte |
| Elektrische Daten | |
| Power Supply | Power over Ethernet (PoE), typ. 48VDC IEEE 802.3af Mode A, power class 0 |
| Power consumption | typ. 1.7W, max. 5.8W (incl. 3W for external devices) |
| Ethernet interface | 100 MBit/s |
| Interface | Connection of up to 50 Tree devices Wire length: max. 3m / 10ft |
| Bell button | 1 touch point, capacitive |
| Speaker | 2x 0.7W continuous / 2x 1W max. momentary |
| Microphone | Digital microphone, MEMS |
| Camera | Field of View: 120° diagonal, 97° horizontal, 50° vertical Resolution: 1280x720 pixel |
| Proximity Sensor | Detection Range: in direct light: 0.2m low ambient light: 2.0m detection angle 27° \\nTechnology: Infrared ToF Sensor |
| Mounting location with direct sunlight | white: allowed anthracite: not allowed |
| Recommended mounting height | 1.6m / 63” top edge |
| Temperature | -20 … 40°C / -4 … 104°F |
| Voltage output for supplying external devices (NFC Code Touch...) | 24VDC, max. 3W Wire length: max. 3m / 10ft |
| Anschlussklemmen | |
| Wire cross-section | 0.25 … 0.8 mm² / AWG 23 … 18 |
| Temperature resistance | -40 … 105 °C / -40 … 221 °F |
| Stripping length | 5 mm / 0.2” |
| Umgebungsbedingungen | |
| Humidity | max. 95% r.H. (non condensing) |
| Gewicht & Abmessungen | |
| Net weight | 115 g |
| Total weight | 142 g |
| Product dimensions | 90 x 90 x 16 mm / 3.55 x 3.55 x 0.63” (L x W x H) |
| Pack size | 104 x 107 x 39 mm / 4.09 x 4.21 x 1.54” (L x W x H) |
| Zertifizierungen & Normen | |
| Protection class | IP34 |
| Certifications | UL 62368-1 UL 60950-1 CSA C22.2#62368-1 CSA C22.2#60950-1 IEC/UL 62368-1 |
| Operating Elements | |
| Click feedback | Yes |
